TION BREEZER LITE

Compact fresh air supply unit

TION BREEZER LITE is the development and patented equipment of the Tion company.

WHAT IS TION BREEZER LITE?

Tion Breezer Lite is perhaps the best super compact fresh air purifier with effective dust and allergen filtration, and noise protection. It can be controlled from a smartphone.

FRESH AIR

Ventilate fresh air in the room without opening the windows

SILENT

With the windows closed, noise from the street will not disturb you.

DUST REMOVAL

G4 filter against fluff, wool, dust and pollen.

BREEZER IN THE MINI FORMAT

Its dimensions are 26 × 26 × 13 cm only! Place it wherever you want.

CONTROL VIA SMARTPHONE

SUPPLY AIR HEATING

Working Principle

(1) Tion air intake grid

(2) G4 filter

(3) Heater

(4) Flap

(5) Fan unit

(6) Control buttons

(7) Power cord

(8) Indication

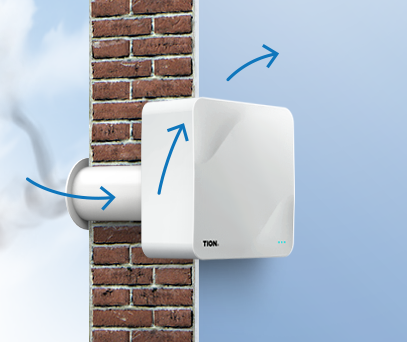

HOW VENTILATION WORKS

WHY TION BREEZER LITE IS DIFFERENT

BREEZER LITE

Supplies the air for 3 persons
Purifies the air
Does not cool the air
Heats the air
Works in any weather conditions

AIR CONDITIONER

Does not supply the air
Does not purify the air
Cools the air
Heats the air
Works in any weather conditions

FRESH AIR VALVE

Supplies the air for one person
Supplies the air for one person
Does not cool the air
Does not heat the air
Cannot work in any weather conditions*

RECUPERATOR

Supplies the air for 1-2 persons
Supplies the air for one person
Does not cool the air
Heats the air
Cannot work in any weather conditions*

SMARTPHONE CONTROL

The MagicAir base station measures air quality, transmits data to a mobile application and controls the TION BREEZER LITE purifier-disinfectant.

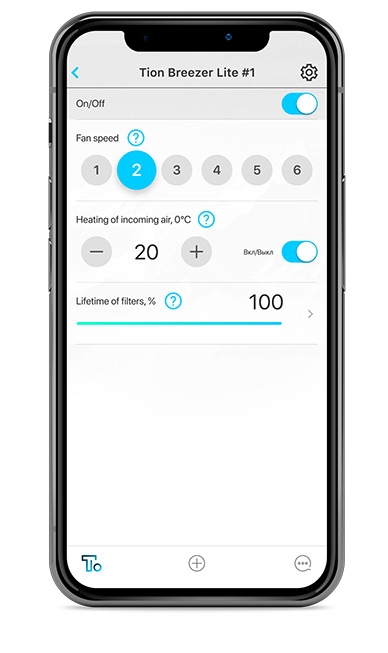

CONVENIENT CONTROL

Control Tion Breezer Lite from your smartphone using Bluetooth wireless technology. The application will show the current state of the device and remind you to change the filters. The Tion Remote app is available for download on Google Play and AppStore .Compatible with mobile devices running Android 4.4 and above and iOS 11.0 and above. Requirements for the Bluetooth module version - 4.2 and higher.

Device
Tion Breezer 3S
Tion Breezer 4S
Tion Breezer Lite
Tion Breezer O2
Maximum air flow
140 m³ / h
140 m³ / h
100 m³ / h
120 m³ / h
Filter Class
G4 + HEPA E11(except for Base equipment)
G4 + HEPA H13(except for Base equipment)
G4 or HEPA E11
F7 + HEPA E11
Gas and odor filter
AK-XL
AK-4S
(-)
AK
Recirculation mode
+
+
(-)
(-)
Rubetek smart home control
(-)
+
(-)
(-)
Breather control from a smartphone
Yes, with MagicAir or Tion Remote app
Yes, with Rubetek App, Tion Remote or MagicAirapp
Yes, with the Tion Remote app
Yes, with the MagicAir app (only via the base station)
Dimensions, mm
528 × 453 × 203
528 × 453 × 203
260 × 260 × 130
514 × 454 × 163
Control via the MagicAir base station
+
+
(-)
+
Warranty
2 Years
2 Years
1 Year
1 Year

INSTALLATION OF TION BREEZER LITE

The standard installation of the breezer takes only one hour provided that it is carried out by specialists with professional equipment.

1. Choosing a place on the wall

The dimensions of the Tion Breezer Lite are 26 × 26 × 13 cm only. It can be easily placed under the window sill, next to the heating radiator, or on the right or left side of the window.
Tion Breezer Lite can be turned in any direction. The air can go up, down or sideways — wherever you like.

2. Installation

An air channel in the wall is made using a diamond drilling rig. It is a quick and clean process. The air channel is insulated and soundproofed from the inside with a special material, and covered with a protective grille from the outside

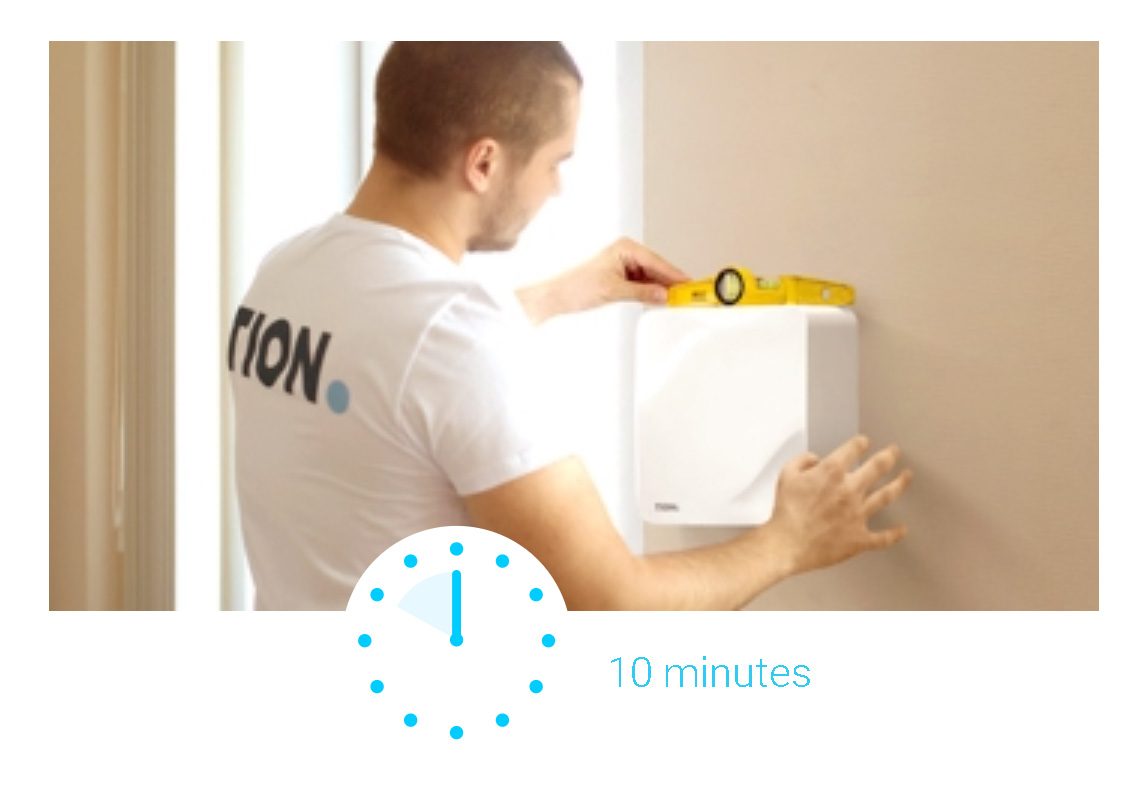

3. Connection

The breezer is mounted onto the wall. In order to eliminate drafts, the inlet of the device fits tightly in the air duct using a gasket.
The breezer is connected to a regular power outlet.

Filter Classes according EN 779 and EN 1822

Categorization of filter classes and particle sizes
Particle Size
Examples
Filter Class
Typical Applications

Coarse dust, particle size > 10 µm

Insects textile fibres, hairs, sandfly ,ash ,spores, pollen,cement, dust,etc

G 3
G 4

-Pre-filters and circulation filters for civil defense shelters
-Exhaust filters for spray painting booths, kitchens, etc.
-Inlet air filters for air conditioners and compact machines (e.g. window air conditioners, ventilators)

Fine dust, particle size 1 - 10 µm
Oil fumes,agglomerated soot tobacco smoke ,metallic-oxide smoke
F 7
F 8
F 9
-Final filters for air conditioning of offices, production plants, control centres, hospitals, EDP centres pre-filters for filter classes E11 to H13 and activated carbon

Suspended particulates, particle size < 1 µm

Germs, bacteria, viruses, tobacco smoke, metallic-oxide smoke,etc

E 10
E 11
E 12

-Final filters for rooms with high and highest purity requirements (e.g. for laboratories, for foods processing, pharmaceutical, fine mechanical, optical or electronics plants or medical facilities)
-Final filters for clean rooms, Classes 100,000 or 10,000

COVID-19

How large is a coronavirus  compared to the PM 10-2.5?

Virions (or “particles”) of coronaviruses are spherical particles between 0.06 micron and 0.14 micron in diameter, averaging about 0.125 micron, measured by electron microscope (Zhu et al, 2020). This means that coronavirus particles are smaller than PM2.5, but larger than some dust and gas particles

Does higher concentrations of PM10-2.5 increase COVID-19 contagion rates?

On 20 March 2020, Setti et all published a study at the Italian Society of Environmental Medicine (SIMA), in which they found a linear relationship with R=0.98 between PM10 levels above 50 microns / m3 and the rate of spread of COVID-19 in Italy. These results are fully consistent with scientific studies on the spread of viruses and bacteria in the population by suspended particles, which correlate the incidence of viral infections with the levels of atmospheric particles (PM10 and PM2.5). (Ciencewicki J. et al., 2007; Sedlmaier N., et al., 2009).The Italian experience indicates a direct relationship between higher levels of particulate matter PM10-2.5 and higher levels of VOC-19.
For every 50 μg/m3 increase in the daily average, the logarithmic infection rate increases by 0.234%. That is to say that at average PM10 levels of 350 μg/m3 , our infection rate will be twice as high as at levels below 50 μg/m3 , as can be seen among the different infection curves observed in the regions analysed in the Italian publication, in which the high infection rate in Lombardy in the other Italian regions stands out.
