Duct air purifier Tion Eco
TION ECO is the development and patented equipment of the Tion company.
Tion Eco is a bactericidal unit with integrated air purification for supply ventilation systems for buildings of all purposes. It works in combination as a bactericidal disinfection unit and a channel filter with the function of air filtration and gas cleaning. The air passing through the Tion Eco is bactericidal and filtered from all types of pollutants: particles of all sizes, mold, bacteria and viruses, allergens, exhaust gases and odors. It is used for dedusting, air purification from harmful substances, and also as a bactericidal disinfection filter for the recirculation branch when organizing ventilation of hospitals,halls, archives, museums, any residential, public buildings and industries.
1Does not emit harmful substances and does not create hazardous radiation.
1The pressure drop across Tion filters is lower than that of HEPA fabric filters.
1Not only disinfects, but also cleans the air from dust and harmful substances.
1It can be used as a bactericidal filter for the organization of building recirculation.
1The high filtration class excludes the ingress of dead microorganisms into the room.
1Energy consumption is several times lower than that of bactericidal sections.
1The cost of replacement elements is 5-20 times cheaper than HEPA filters and UV lamps.
(1) The prefiter: retains coarse dust and prevents dirt, fluff and wool from getting inside the device.Passing through the electrostatic unit.
(2) Electrostatic unit: Pollutants and bioaerosols acquire an electrostatic charge and are efficiently deposited on a volumetric HEPA filter.
(3) HEPA Filter:Due to the ozone produced from oxygen, an electrostatic unit in bactericidal concentrations ensures the inactivation (destruction) of viruses, bacteria, and mould spores. Due to inactivation, the volumetric HEPA filter is constantly sterilised during operation, including filter replacement (special methods for the disposal of used filters are not required). This ensures complete microbiological safety of the filtration system.Ozone is completely decomposed into oxygen, passing through an adsorption catalytic filter.
(4) Adsorption-catalytic filter: while accelerating the reactions of destruction of molecular chemical compounds. The adsorption-catalytic filter is designed to filter harmful substances in the gas phase and odors. The ozone concentration at the outlet of the device is guaranteed not to exceed the MPCss for the entire service life. Thus, the device can be operated around the clock in the presence of people. When used, the device does not change the microclimatic parameters (temperature, humidity) and the ionic composition of the air.The control and management of the installation is carried out using
(5) The automation unit:An indication panel is provided for suspended models.
In any air handling unit that you buy, "by default" there are coarse air filters G3 - G4. They are mainly designed to protect against coarse dust, fluff, etc. At best, an F7 dust filter and a carbon filter are additionally offered. Such filters trap only pollutants larger than 5 microns, and the most dangerous micro- and nanosized particles enter the room and our lungs. In addition, conventional filters accumulate bacteria and mold spores, becoming breeding grounds for infection.
Tion Eco purifies and disinfects the air in the complex from all contaminants at once. Air purification class HEPA H11 allows you to trap particles of any size, including dust, soot, allergens, bacteria, viruses, etc. At the same time, the filters remain sterile, not accumulating, but destroying the infection. Also, professional cleaning is carried out from exhaust gases, odors and harmful substances.

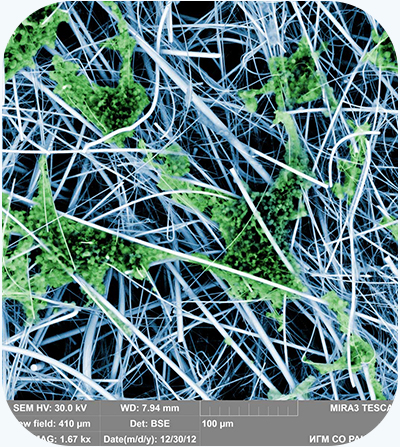

There is no inactivation on conventional filters in ventilation
(mold and infections multiply)

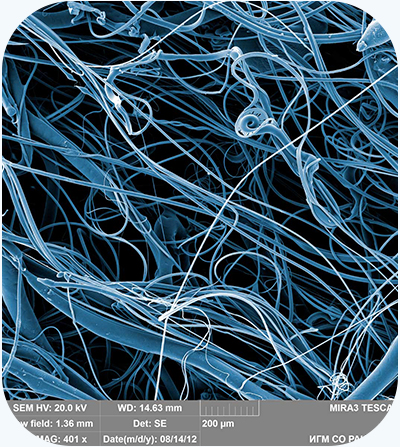

Tion filters are always sterile due to inactivation.
Therefore, there is no need to specialize filters.
Tion Eco excels in the efficiency of air purification and disinfection of the UV disinfection section. All pathogenic microorganisms, including those resistant to UV radiation, are retained and killed on active Tion HEPA filters. This result cannot be achieved using traditional UV germicidal units. Tion allows you to completely eliminate the risk of dangerous microflora entering the room.
The worse the filter in ventilation, the faster the air ducts through which the air enters the room become dirty. Special equipment is used to clean them. This service is not cheap and with the current air pollution should be carried out at least once a year, otherwise the air ducts become an accumulation of dirt, due to which the ventilation performance will decrease, become a "breeding ground" of mold, bacteria, and other microorganisms.
With Tion Eco units, air ducts may not be cleaned for their entire service life. This is guaranteed to recoup all the costs of purchasing it.

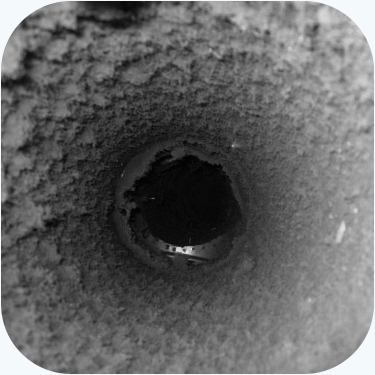

With conventional filter

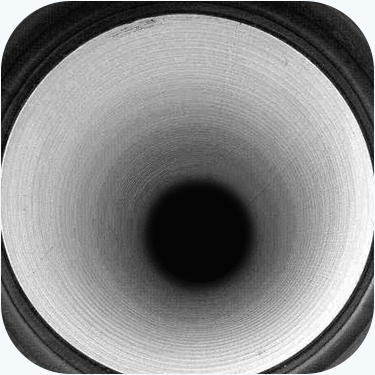

With Tion Eco
The LED control and monitoring panel is designed for convenient control of Tion air purification units. It duplicates the signals of the indication panel located on the unit's automation unit. It can be located in any convenient place.
The unit is controlled from the control and monitoring panel. Up to 4 units of various capacities can be connected to one console at the same time. Installations connected to one control panel can be located in different rooms, the maximum distance to the control panel can be up to 100m. The units can be connected to a unified building management system.
Tion Eco is a profitable and convenient replacement for the disinfection sections scattered in ventilation with UV lamps, HEPA filters and carbon filters: the entire Tion Eco air disinfection and purification complex is in a single device.
Duct air purifier-disinfectant
Medical Device
The Tion B bactericidal unit is an advantageous and convenient replacement for the disinfection sections with UV lamps, HEPA filters and carbon filters for air purification scattered in ventilation: the entire Tion B air disinfection and purification complex is in a single device.
Case model
The case model is selected in accordance with the room size and requirement:
For example, the Tion Eco x600 unit is suitable for suspended and / or floor placement in a ventilation system with a capacity of up to 600 m 3 / h.
Virions (or “particles”) of coronaviruses are spherical particles between 0.06 micron and 0.14 micron in diameter, averaging about 0.125 micron, measured by electron microscope (Zhu et al, 2020). This means that coronavirus particles are smaller than PM2.5, but larger than some dust and gas particles
On 20 March 2020, Setti et all published a study at the Italian Society of Environmental Medicine (SIMA), in which they found a linear relationship with R=0.98 between PM10 levels above 50 microns / m3 and the rate of spread of COVID-19 in Italy. These results are fully consistent with scientific studies on the spread of viruses and bacteria in the population by suspended particles, which correlate the incidence of viral infections with the levels of atmospheric particles (PM10 and PM2.5). (Ciencewicki J. et al., 2007; Sedlmaier N., et al., 2009).The Italian experience indicates a direct relationship between higher levels of particulate matter PM10-2.5 and higher levels of VOC-19.
For every 50 μg/m3 increase in the daily average, the logarithmic infection rate increases by 0.234%. That is to say that at average PM10 levels of 350 μg/m3 , our infection rate will be twice as high as at levels below 50 μg/m3 , as can be seen among the different infection curves observed in the regions analysed in the Italian publication, in which the high infection rate in Lombardy in the other Italian regions stands out.
