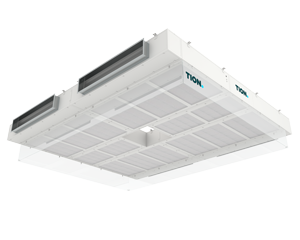

TION Laminar ceilings and cells Tion V Lam is the development and patented equipment of the Tion company.
Laminar ceilings and cells Tion V Lam are ceiling devices for supplying clean air to areas with special requirements for cleanliness using a unidirectional flow. Air enters from the street through the ventilation system (or is taken directly from the serviced room if a recirculation column is connected), passes through the cleaning and disinfection system in the laminar ceiling, and enters the area of the operating table or patient's bed in a unidirectional flow, from top to bottom. Laminar ceiling Tion V Lam simultaneously filters out particles, inactivates (destroys) all types of microorganisms, cleans the air from odors and harmful gases. Device class - HEPA H14 meets ISO 5 class air filtration requirements for clean areas.
1Laminar ceilings and cells Tion V Lam not only filters and disinfects, but also cleans the air from dust, allergens, harmful substances and odors.
1Equally high efficiency of disinfection for all types of microorganisms, including those resistant to UV radiation: molds, mycobacterium tuberculosis, etc.
1The high filtration class excludes the ingress of dead microorganisms into the room.
1No ultraviolet lamps - no wiping, verification, their special disposal.
1Does not emit harmful substances and does not create hazardous radiation.
1They can also be placed in rooms with ceilings only 3 meters high.
1They can operate in partial or full recirculation mode due to the recirculation column.
1The pressure drop across the filters of the device is several times lower than on laminar machines with conventional HEPA filters.
1Replacement elements Tion B Lam are cheaper than UV lamps and conventional HEPA filters.
1Energy consumption is 10 times lower than that of bactericidal sections.
Laminar ceilings and cells Tion V Lam is a comprehensive solution to achieve the required parameters of air purity specified by standards. Filtration of particles and microorganisms, disinfection with inactivation according to SanPiN 2.1.3.2630-10 and cleaning from harmful gases are carried out in a single device.
(1) The prefiter retains coarse dust and prevents dirt, fluff and wool from getting inside the device.Passing through the electrostatic unit.
(2) Pollutants and bioaerosols acquire an electrostatic charge and are efficiently deposited on a volumetric HEPA filter.
(3) Due to the ozone produced from oxygen, an electrostatic unit in bactericidal concentrations ensures the inactivation (destruction) of viruses, bacteria, and mould spores. Due to inactivation, the volumetric HEPA filter is constantly sterilised during operation, including filter replacement (special methods for the disposal of used filters are not required). This ensures complete microbiological safety of the filtration system.Ozone is completely decomposed into oxygen, passing through an adsorption catalytic filter.
(4) While accelerating the destruction of molecular chemical compounds. The adsorption-catalytic filter is designed to filter harmful substances in the gas phase and odors. Concentrations of ozone at the outlet of the device are guaranteed not to exceed the MPCss for the entire lifecycle. Thus, the device can be operated around the clock in the presence of people. When used, the device does not change the microclimatic parameters(temperature, humidity) and the ionic composition of the air.

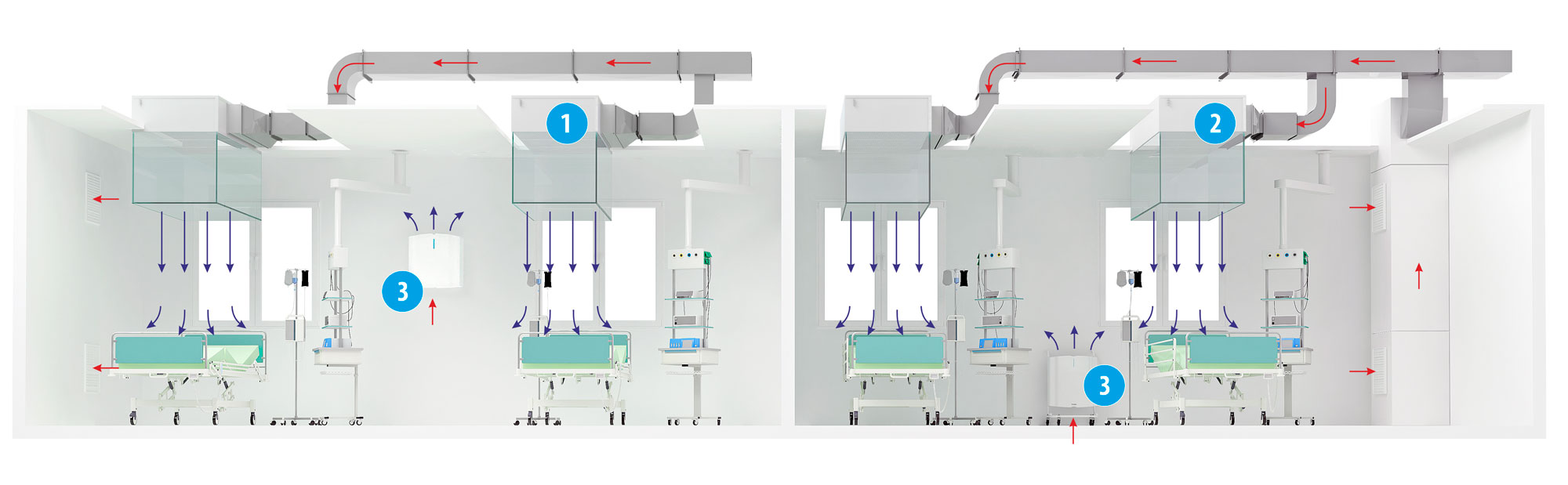

Laminar ceiling with ventilation connection (100% air from outside)
Laminar ceiling with connection to ventilation and recirculation through the recirculation column (s) (part of the air is taken from the street, part from the room)

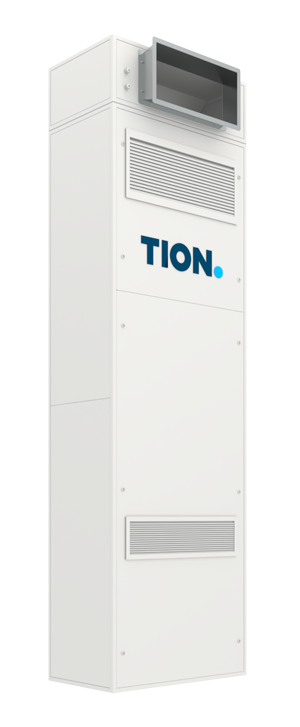

Recirculation column -RP is supplied on request for laminar ceiling. Allows to reduce the intake of fresh air from the street due to the intake of part of the air from the serviced room. This reduces the load and energy consumption of the ventilation system for heating and cooling the supply air. The fan speed is automatically adjusted depending on the supplied volume of fresh air in order to achieve the standard value of the air flow rate at the exit from the laminar ceiling (0.24 m / s). The recirculation column is mounted on the wall of the room. If necessary, the column (s) allows the laminar system to operate without being connected to ventilation: all air is taken from the room by the recirculation columns -RP, disinfected, cleaned and fed back into the room.

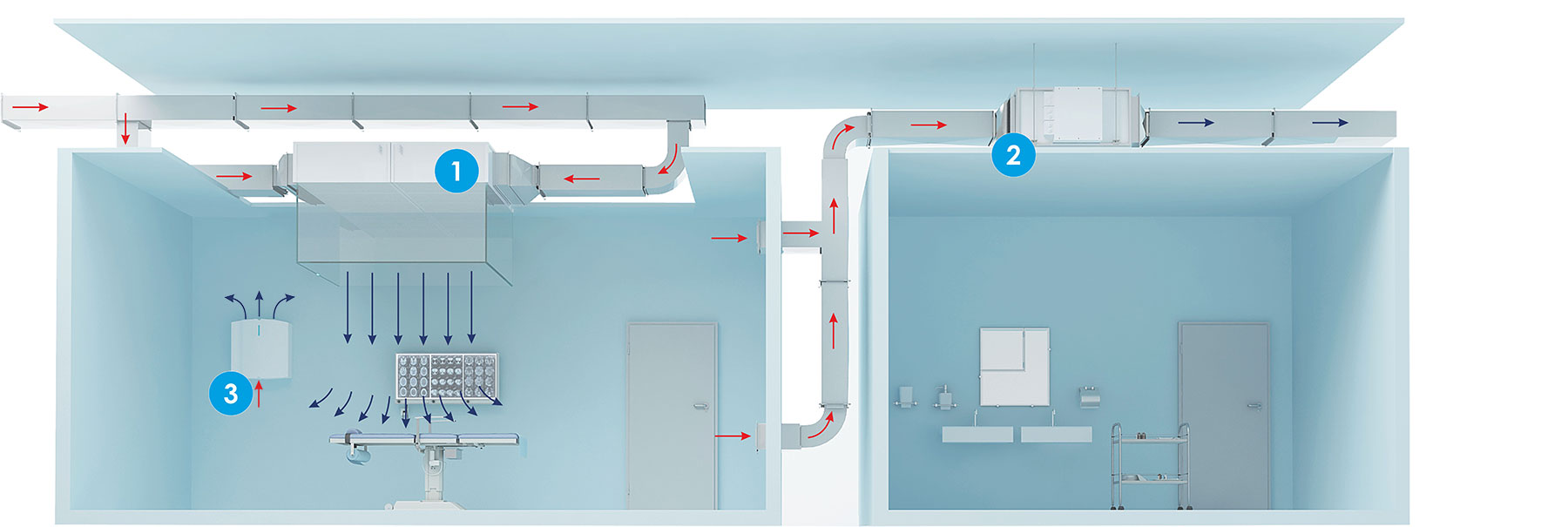

HIGHLY ASEPTIC OPERATING ROOMS
- transplantation and transplantation of organs and tissues;
- implantation of foreign bodies (prosthetics of the hip, knee and other joints, hernia repair with mesh prosthesis, etc.);
- reconstructive surgery on the heart, large vessels, genitourinary system, etc.;
- reconstructive surgery using microsurgical techniques;
- combined operations for tumors of different localization;
- open thoracoabdominal operations;
- neurosurgical operations;
- operations with extensive operating fields and / or long duration, requiring long-term presence of tools and materials in the open;
- operations after preoperative chemotherapy and / or radiation therapy for patients with a reduced immune status and multiple organ failure;
- operations for concomitant injury, etc.

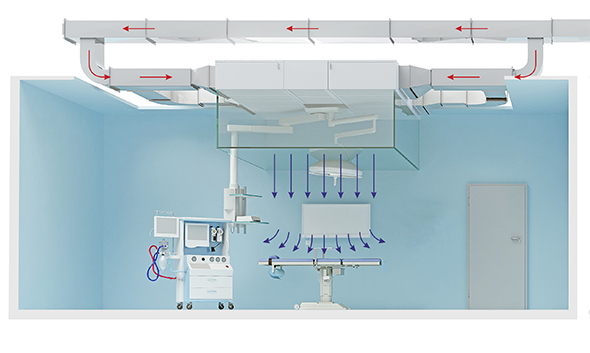

Operating table and instrument protection:To protect the patient and sterile instrument from airborne contamination, laminar ceilings are used. The device is built into the ventilation supply channel of a medical institution directly into the ceiling above the operating table and provides a continuous supply of purified and sterile unidirectional air flow to the operation area. The device must provide filtration of air of class H14 and inactivation of microorganisms on filters at least 99% . The area of the laminar field is not less than 9m2 .Equipment: Laminar ceilings Tion V Lam-1 with a body height of 400mm, Tion B Lam-1 H290 with a body height of 290mm (for low ceilings)
2 Reducing the volume of outdoor air from the street:In view of the significant air consumption, for the formation of a unidirectional flow, it may be advisable to use a ventilation system for operating rooms with partial air recirculation (part of the air is taken by the ventilation system from the street, and part is mixed in from the room), provided it is cleaned and disinfected on filters of at least class H14 with inactivation of at least 99% . This allows you to significantly save energy for heating or cooling the supply air by the ventilation system. This method of air exchange can be provided by installing a laminar ceiling and connecting columns or recirculation modules to it, which provide a mixture of air from the room.Equipment: Wall-mounted recirculation column -RP is suitable for all Tion laminators
3 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least H11 and inactivation of microorganisms on filters of at least 99% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions

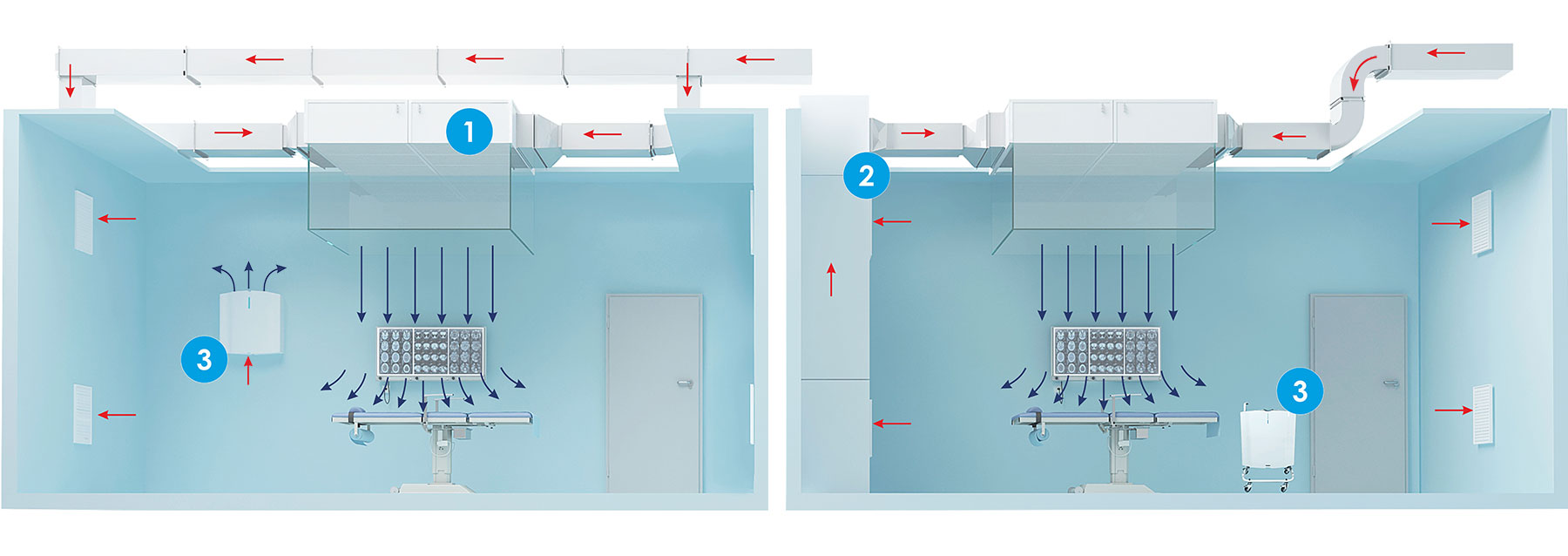

INFECTIOUS OPERATING ROOMS
- for patients with purulent infection,
- for patients with anaerobic infection
- for tuberculosis patients, etc.
Disinfection and purification of the exhaust air: To ensure the safety of people in the building and outside, the air removed from the infectious operating room must undergo filtration class H13 and inactivation (complete destruction) of microorganisms on filters at least 95% . The area of the laminar field is not less than 3-4m2 .Equipment: Disinfectants air purifiers for the exhaust ventilation duct:Tion ECO-400 (performance from 400 to 1000 m3 / h) and Tion ECO-2000 (capacity 2000 and 3000 m3 / h)
2 Operating table and instrument protection: To protect the patient and sterile instrument from airborne contamination, laminar ceilings are used. The device is built into the hospital ventilation supply channel directly into the ceiling above the operating table and provides a continuous supply of purified and sterile unidirectional air flow to the operating area. The device must provide filtration of air of class H14 with inactivation of at least 95% .Equipment:Laminar ceilings with a body height of 400mm: Tion V Lam-4 (2600 × 1800 × 400mm with a niche for a lamp) and for low ceilings with a body height of 290mm: Tion V Lam-4 H290 (3080 × 1800 × 290mm with a niche for a lamp ).
3 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least H11 and inactivation of microorganisms on filters of at least 95% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions
SMALL OPERATING ROOMS (GENERAL SURGERY)
- endoscopic operations;
- endovascular interventions;
- other medical and diagnostic manipulations with small sizes of the operating field;
- hemodialysis, plasmapheresis, etc.;
- cesarean section;
- selection of umbilical cord blood, bone marrow, adipose tissue, etc. for the subsequent isolation of stem cells.
Operating table and instrument protection: To protect the patient and sterile instrument from airborne contamination, laminar ceilings are used. The device is built into the ventilation supply channel of a medical institution directly into the ceiling above the operating table and provides a continuous supply of purified and sterile unidirectional air flow to the operation area. The device must provide filtration of air of class H14 and inactivation of microorganisms on filters at least 95% . The area of the laminar field is not less than 8-9 m2 .Equipment: Laminar ceiling with a body height of 400mm: Tion V Lam-1 (2600 × 3600 × 400mm with a niche for a lamp); for low ceilings with a body height of 290mm: Tion V Lam-1 H290 (3080 × 3600 × 290mm with a niche for a lamp).
2 Reducing the volume of outdoor air from the street:In view of the significant air consumption, for the formation of a unidirectional flow, it may be advisable to use a ventilation system for operating rooms with partial air recirculation (part of the air is taken by the ventilation system from the street, and part is mixed in from the room), provided it is cleaned and disinfected on filters of at least class H14 with inactivation of at least 95% . This allows you to significantly save energy for heating or cooling the supply air by the ventilation system. This method of air exchange can be provided by installing a laminar ceiling and connecting columns or recirculation modules to it, which provide a mixture of air from the room.Equipment: Wall-mounted recirculation column -RP for Tion laminar ceilings.
3 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least H11 and inactivation of microorganisms on filters of at least 95% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions
UNIDIRECTIONAL FLOW RESUSCITATION AND INTENSIVE CARE WARDS
The wards are intended for patients:
- after bone marrow transplantation.
- with extensive burns.
- receiving high doses of chemotherapy and radiation therapy.
- after extensive surgical interventions.
- with reduced immunity or its complete absence.
Patient bed protection Laminar ceilings are used in resuscitation and intensive care units to protect the patient from airborne contamination. The device is built into the ventilation supply channel of a medical institution directly into the ceiling above the patient's bed and provides a continuous supply of purified and sterile unidirectional air flow to the bed area. The device must provide filtration of air of class H14 and inactivation of microorganisms on filters at least 99% . The area of the laminar field is not less than 1-1.8m2 .Equipment:Laminar ceilings Tion V Lam-2 (1800x1000x400mm); for low ceilings: Tion V Lam-2 H290 (1800x1000x290mm).Laminar cells Tion V Lam-M1 (600x600x400mm), Tion V Lam-M2 (1200x600x400mm)
2 Reducing the volume of outdoor air from the street: In view of the significant air consumption, in order to form a unidirectional flow over each of their beds in the department, it is advisable to use the ventilation system in intensive care with partial air recirculation (part of the air is taken by the ventilation system from the street, and part is mixed from the room), provided it is not cleaned and disinfected on filters. below class H14 with inactivation of at least 99% .This allows you to significantly save energy for heating or cooling the supply air by the ventilation system. This method of air exchange can be provided by installing a laminar ceiling and connecting columns or recirculation modules to it, which provide a mixture of air from the room.Equipment:Wall-mounted recirculation column -RP suitable for all Tion laminars.
3 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least H11 and inactivation of microorganisms on filters of at least 99% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions

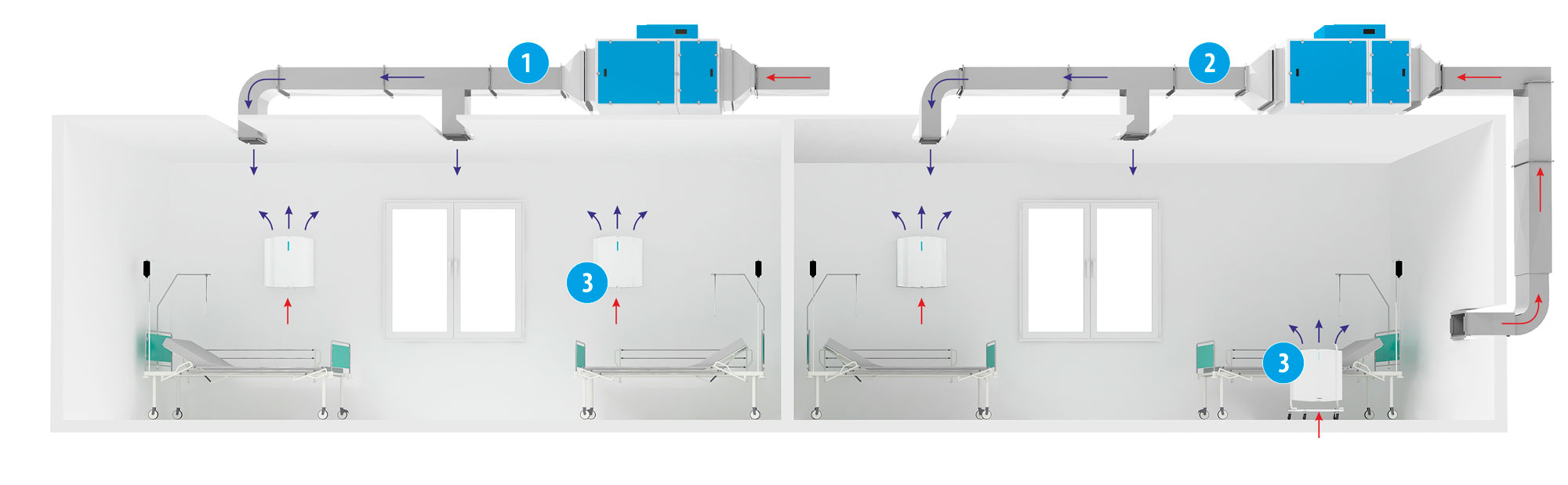

ASEPTIC ROOMS AND ROOMS WITHOUT UNIDIRECTIONAL FLOW
- wards for patients after internal organ transplant operations.
- wards for burn patients.
- wards for patients transferred from intensive care units.
- post-anesthesia wards.
- for debilitated or seriously ill patients of a non-surgical profile.
- postpartum, including with the joint stay of the child.
- for nursing newborns (second stage).
- preoperative, anesthetic and other rooms leading to operating rooms;
- aesthetic dressing and procedural bronchoscopy; pantries of sterile materials;
- X-ray operating rooms, including sterilization rooms at operating rooms;
- CSO: clean and sterile areas;
- dialysis rooms, procedural ICU, barosals, assistant and filling pharmacies, embryological laboratory
Patient bed protection To ensure sterile conditions, air is supplied to aseptic rooms (sterilization departments, dialysis rooms, etc.) and wards (burns, post-anesthesia, postpartum, etc.) through a ventilation system with disinfection and cleaning on filters of at least class H11 and inactivation of microorganisms on filters at least 95% .Equipment: Disinfectants air purifiers for the exhaust ventilation duct:Tion ECO-400 (performance from 400 to 1000 m3 / h) and Tion ECO-2000 (capacity 2000 and 3000 m3 / h)
2 Reducing the volume of outdoor air from the street: To reduce the cost of processing the external supply air, it is recommended to use recirculation of air (taking part of the air from the room), provided it is cleaned and disinfected on filters of at least class H14 with inactivation of at least 95% .This allows you to significantly save energy for heating or cooling the supply air by the ventilation system. This method of air exchange can be provided by installing a laminar ceiling and connecting columns or recirculation modules to it, which provide a mixture of air from the room.Equipment:Wall-mounted recirculation column -RP suitable for all Tion laminars.
3 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least H11 and inactivation of microorganisms on filters of at least 99% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions

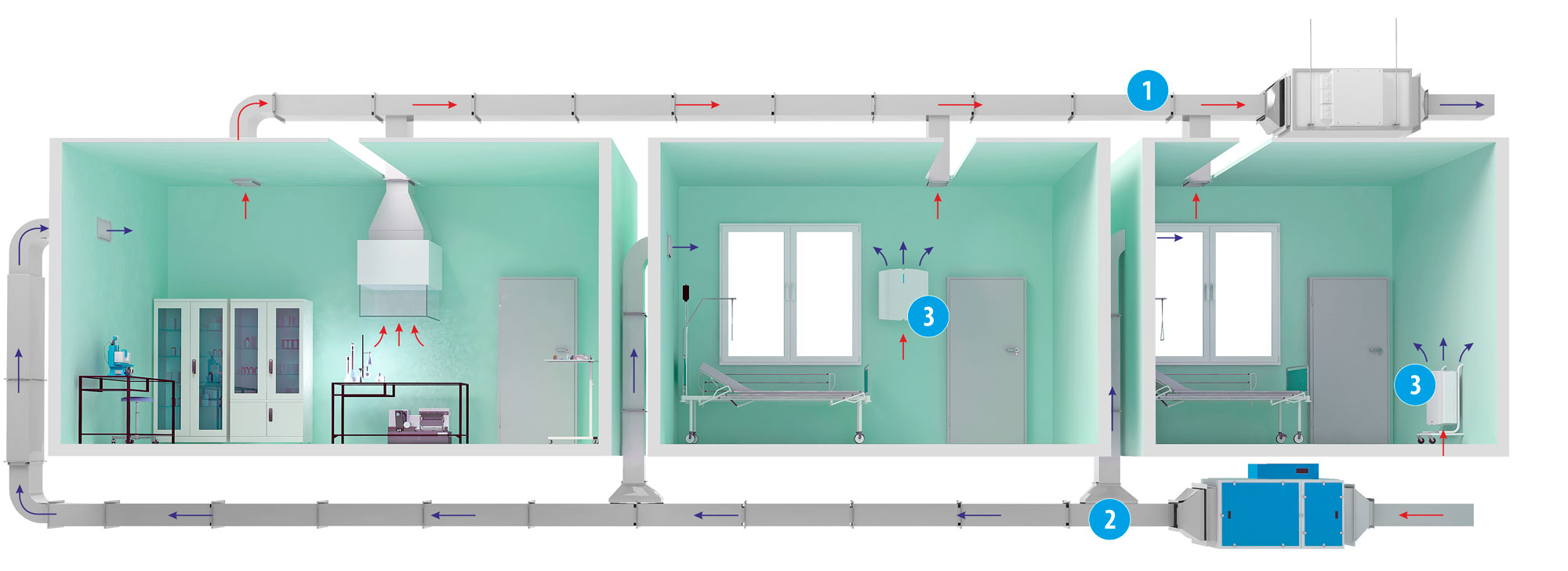

PREMISES FOR INFECTIOUS DISEASES AND BIOLOGICAL LABORATORIES
- wards, boxes (including tuberculosis).
- dressing rooms, sluices and other rooms of infectious wards.
- premises and boxes of microbiological laboratories working with pathogenic microorganisms (aerosol chambers; boxed rooms; microbiological rooms)
Patient bed protection To ensure sterile conditions, air is supplied to aseptic rooms (sterilization departments, dialysis rooms, etc.) and wards (burns, post-anesthesia, postpartum, etc.) through a ventilation system with disinfection and cleaning on filters of at least class H11 and inactivation of microorganisms on filters at least 95% . The area of the laminar field is not less than 1-1.8m2 .Equipment: Disinfectants air purifiers for the exhaust ventilation duct:Tion ECO-400 (performance from 400 to 1000 m3 / h) and Tion ECO-2000 (capacity 2000 and 3000 m3 / h)
2 Reducing the volume of outdoor air from the street: To reduce the cost of processing the external supply air, it is recommended to use recirculation of air (taking part of the air from the room), provided it is cleaned and disinfected on filters of at least class H14 with inactivation of at least 95% .This allows you to significantly save energy for heating or cooling the supply air by the ventilation system. This method of air exchange can be provided by installing a laminar ceiling and connecting columns or recirculation modules to it, which provide a mixture of air from the room.Equipment: Tion Ext 300 duct air purifier, exhaust cleaning without combustion (performance from 300 to 750 m3 / h) and Tion Ext 4000 duct air purifier, exhaust cleaning without combustion (capacity 4000 - 25000 m3 / h)
3 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least F9 and inactivation of microorganisms on filters of at least 99% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions

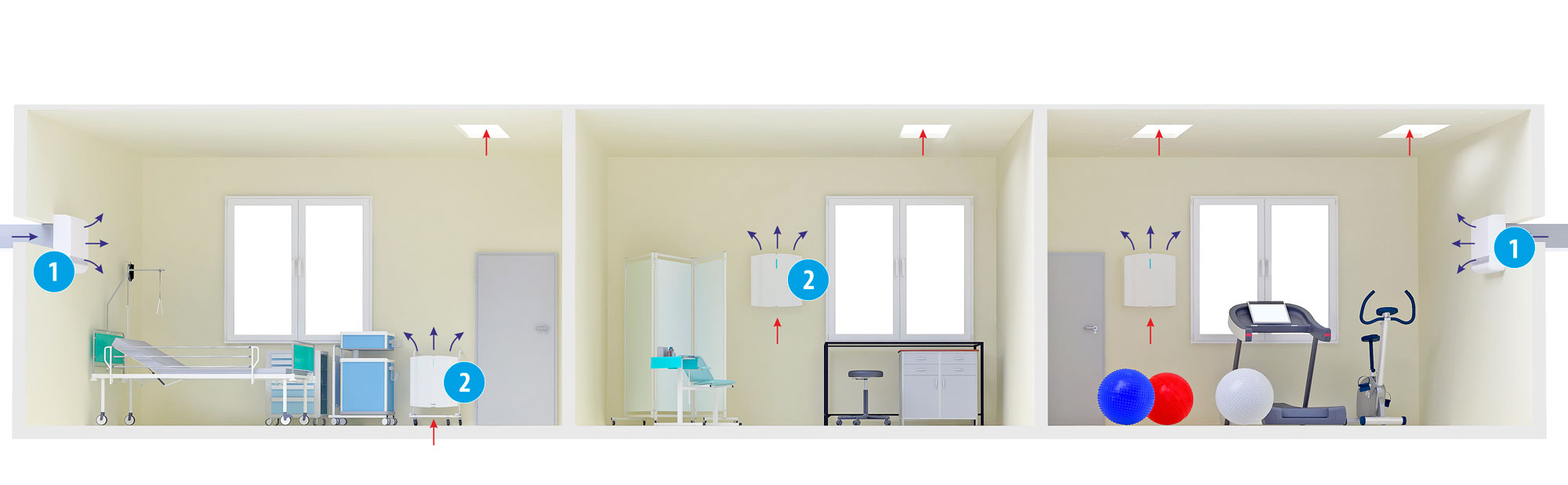

PREMISES WITHOUT HIGH REQUIREMENTS FOR AIR PURITY,
BUT WITH REQUIREMENTS FOR THE FREQUENCY OF AIR EXCHANGE
- boxes of ward departments, boxed wards
- wards for adult patients, rooms for mothers in children's departments, rehabilitation wards
- reception departments
- gateways in front of wards for newborns
- doctors' offices, rooms for daytime
patients
- rooms for functional diagnostics, procedural endoscopy (gastroduodenoscopy, colonoscopy, retrograde cholangiopancreatography, etc., except for bronchoscopy).
- physical therapy rooms
- magnetic resonance imaging
procedures - procedures with the use of chlorpromazine
- procedures for treatment with neuroleptics
- control rooms, staff rooms, patient rooms after procedures
- treatment rooms and dressing rooms for X-ray diagnostic, fluorographic rooms, electric light therapy rooms, massage room
- control rooms for X-ray rooms and radiological departments, dark laboratories
- assembly and washing rooms for an artificial kidney, endoscopy, heart-lung machines, solution-demineralization.
- bathrooms (except for radon ones), paraffin and ozokerite heating rooms, medical swimming pools
- control rooms, staff rooms, patient rest rooms after procedures
- treatment rooms and dressing rooms for X-ray diagnostic, fluorographic rooms, electric light therapy rooms, massage room
- control rooms for X-ray rooms and radiological departments , darkroom
- rooms (rooms) for sanitizing patients, showers
- dressing rooms in water and mud treatment departments
- rooms for radon baths, halls and rooms for mud therapy for strip procedures, shower rooms
- rooms for storing and regenerating dirt
- rooms for preparing a solution of hydrogen sulfide baths and storing reagents
- rooms for washing and drying sheets, canvases, tarpaulins, mud kitchens
- pantries (except for storing reagents), technical rooms (compressor, pumping rooms, etc.), equipment repair shops, archives
- sanitary rooms, sorting and temporary storage rooms dirty linen, washing rooms, stretchers and oilcloths, drying rooms for clothes and shoes of mobile teams
- pantries of acids, reagents and disinfectants
- registries, information lobbies, dressing rooms, rooms for receiving parcels for patients, discharge rooms, waiting rooms, pantries, canteens for patients, dairy room.
- a room for washing and sterilizing table and kitchen utensils at the pantry and canteen departments, hairdressing salons for serving patients
- storage of radioactive substances, packing and washing in radiological departments
- rooms for X-ray and radiotherapy
- rooms for electric, light, magnetic, heat therapy , treatment with ultrasound
- rooms of disinfection chambers: receiving and loading; unloading (clean) departments
- sectional, museums and preparatory departments at pathological departments
- premises for dressing corpses, issuing corpses, storage rooms for funeral accessories for processing and preparing for burial of infected corpses, storage rooms, bleach
- bathrooms
- enema
- clinical diagnostic laboratories (premises for research)
Patient bed protection To ensure sterile conditions, air is supplied to aseptic rooms (sterilization departments, dialysis rooms, etc.) and wards (burns, post-anesthesia, postpartum, etc.) through a ventilation system with disinfection and cleaning on filters of at least class F7-F9 and inactivation of microorganisms on filters at least 95% .Equipment: compact supply ventilation Breezer Tion O2 or our flagship model Breezer TION 3S with air purification (up to 120 m3 / h, HEPA class air purification, climate control)
2 Indoor air disinfection and purification:To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least F9 and inactivation of microorganisms on filters of at least 99% Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions.

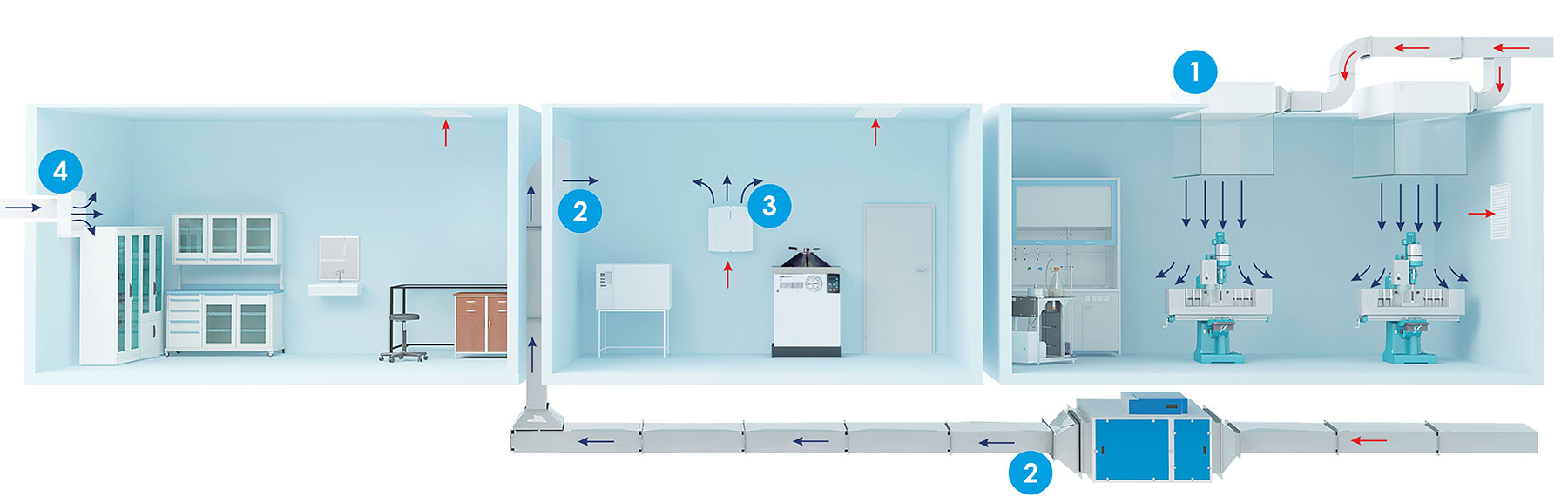

PHARMACEUTICAL PRODUCTION,
PHARMACIES AT MEDICAL INSTITUTIONS
- premises for the preparation of dosage forms in aseptic conditions
- assistant, defect, blank and filling, seaming and control-marking, sterilization-autoclave, distillation
- control and analytical, washing, unpacking
- storage rooms for the main stock of:
a) medicinal substances, finished medicinal drugs, incl. and thermolabile, and medical supplies; dressings
b) mineral waters, medical glass and reversible transport containers, glasses and other optical items, auxiliary materials, clean dishes
- premises for the preparation and packaging of poisonous drugs and drugs, flammable and combustible liquids
Protecting Critical Operations in Drug Manufacturing: Unidirectional airflow devices are used to protect critical operations such as filling and capping against airborne contamination. A laminar ceiling or cell is built into the ventilation supply duct directly into the ceiling above the working area and provides a continuous supply of purified and sterile unidirectional air flow. The device must provide air filtration of class H14 and inactivation of microorganisms on filters at least 99% (requirements for class A according to SanPiN 2.1.3.2630-10). The area of the laminar field of the device is selected depending on the area of the working area of the cleaner production.Equipment: Laminar cells Tion V Lam-M1 (600x600x400mm), Tion V Lam-M2 (1200x600x400mm)Laminar ceilings Tion V Lam-2 (1800x1000x400mm); for low ceilings: Tion B Lam-2 H290 (1800x1000x290mm)
2 Disinfection and purification of supply air:Into the premises of the assistant, defect, blank and filling, seaming and control-marking, sterilization-autoclave and distillation rooms, fresh air is supplied through the ventilation system with disinfection and cleaning on filters of at least class H11 and inactivation of microorganisms on filters of at least 99% (requirements for class B according to SanPiN 2.1.3.2630-10). Since the rates of air exchange rate are low and amount to no more than 4 times, in cases of small rooms up to 50m2 it may be advisable to install compact supply ventilation (without laying air ducts) with air purification instead of central ventilation.Equipment: For central supply ventilation:Tion ECO-400 (performance from 400 to 1000 m3 / h) and Tion ECO-2000 (capacity 2000 - 25000 m3 / h)
Indoor air disinfection and purification: To reduce contamination and increase the frequency of air exchange, it is recommended to install autonomous disinfectants of air purifiers (recirculators) with a filtration class of at least F9 and inactivation of microorganisms on filters at least 95% .Equipment: TION CLEVER disinfectant-air purifier in mobile and wall-mounted versions
Ensuring the frequency of air exchange and air purity standards: In the premises of pharmacies: control and analytical, washing, unpacking, as well as warehouses for storing stocks, the requirements for air purity are not regulated, but air exchange rates apply. They are achieved by arranging a central supply and exhaust ventilation system, or, if it is impossible or absent, by installing a compact supply ventilation with air purification in each separate room. F9 and inactivation of microorganisms on filters at least 95% .Equipment: compact supply ventilation Breezer Tion O2 or our flagship model Breezer TION 3S with air purification (up to 120 m3 / h, HEPA class air purification, climate control)

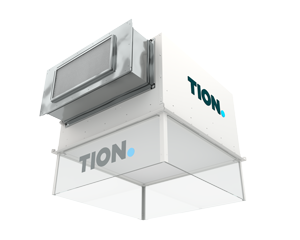

Case model -Gh -RPn
The case model is selected in accordance with the room group in accordance with GOST 52539-2006. Tion B Lam has body versions with heights of 400 and 290 mm. Some models have a niche for a surgical light.
Gh is the height of the flow guiding curtains.
RP - recirculation columns.
n - the number of columns connected to the laminar.
For example, the Tion B Lam-4 -RP2 laminar is suitable for protecting the operating table in small operating rooms, including infectious wards (isolators). Has a body height of 400 mm, a niche for a lamp, curtains 300mm high. Two plug-in recirculation columns allow the ceiling to work either in partial recirculation mode or completely autonomous.
