Compact ventilation system for home and office
TION BREEZER 3S is the development and patented equipment of the Tion company.
Our flagship model Tion Breezer 3S is a compact ventilation and air purification unit for apartments, houses, and offices. What makes it unique from any of the air purifiers in the market, that it works to solve one of the most important issues that most air purifiers fail to deal with, that of CO2 build up inside closed places. It does so by taking in air from the street outside, heats it up if necessary, purifies it, and delivers it into the room. In air recirculation mode, it removes dust and unwanted odors from indoor air. The Automatic operating mode saves time and energy.
Ventilation with closed windows
With the windows closed, noise from the street will not disturb you.
Three filters against dust, dirt, allergens, and hazardous gases
Recirculation mode cleans the air inside the room.
(1) Tion Pre-Filter
(2) G4 filter
(3) High-efficiency filter, E11 (Н11) grade
(4) AC-XL filter against hazardous gases
(5) Heater
(6) Fan unit
Supplies air for 5 persons
Purifies the air
Inflow or recirculation
Does not cool the air
Heats the air
Works in any weather conditions
Supplies the air for 1-2 persons
Supplies the air for one person
Does not cool the air
Heats the air
Cannot work in any weather conditions*
Supplies the air for one person
Supplies the air for one person
Does not cool the air
Does not heat the air
Cannot work in any weather conditions*
Does not supply the air
Does not purify the air
Cools the air
Heats the air
Works in any weather conditions
The MagicAir base station measures air quality, transmits data to a mobile application and controls the TION Breezer purifier-disinfectant.

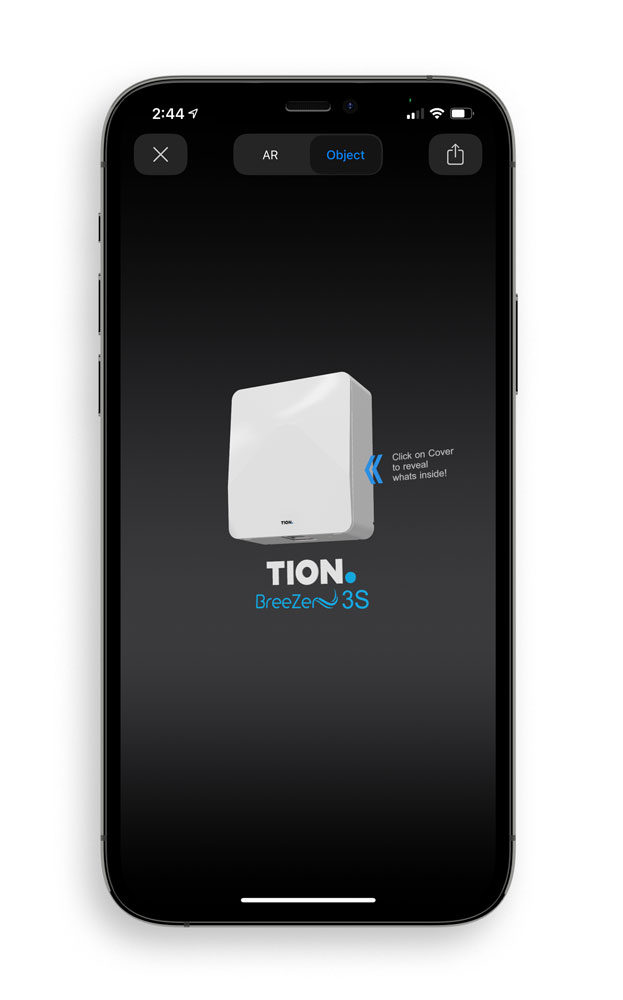

Control your Breezer 3S using an LCD-display remote controller unit, or using the free MagicAir mobile app. Just download the MagicAir app from Google Play or the App Store and install it on your smartphone.Compatible with mobile devices running Android 4.4 and above and iOS 11.0 and above. Requirements for the Bluetooth module version - 4.2 and higher.
Start the automatic Breezer operation or control it remotely using the MagicAir mobile app. The MagicAir Base Station measures the air quality, transmits the data to the app, and adjusts the Breezer operation to the user defined parameters.
1. Connect Breezer to MagicAir Base Station and adjust CO2 and incoming air reheat temperature levels in the mobile application as necessary.
2. Base Station measures air quality in the room and commands Breezer to achieve the desired air environment and maintain it without user input.
3. Breezer works exactly as intended and only when necessary. This ensures a comfortable microclimate, the most optimal operation and efficient use of energy.
The standard installation of the breezer takes only one hour provided that it is carried out by specialists with professional equipment.
The Breezer can be installed under a window sill, near a radiator or by the side of a window. The remote controller also allows the device to be placed under the ceiling.
The installation crew drills a hole in the wall using a diamond drilling machine, quickly and cleanly. The hole is then heat- and noise-insulated with a special material, and closed off with a decorative grille from the outside.
The Breezer is mounted on the wall; the inlet of the device is tightly sealed to the air duct to eliminate drafts. The Breezer is plugged into an ordinary power socket.
Coarse dust, particle size > 10 µm
Insects textile fibres, hairs, sandfly ,ash ,spores, pollen,cement, dust,etc
-Pre-filters and circulation filters for civil defense shelters
-Exhaust filters for spray painting booths, kitchens, etc.
-Inlet air filters for air conditioners and compact machines (e.g. window air conditioners, ventilators)
Suspended particulates, particle size < 1 µm
Germs, bacteria, viruses, tobacco smoke, metallic-oxide smoke,etc
E 10
E 11
E 12
-Final filters for rooms with high and highest purity requirements (e.g. for laboratories, for foods processing, pharmaceutical, fine mechanical, optical or electronics plants or medical facilities)
-Final filters for clean rooms, Classes 100,000 or 10,000
Virions (or “particles”) of coronaviruses are spherical particles between 0.06 micron and 0.14 micron in diameter, averaging about 0.125 micron, measured by electron microscope (Zhu et al, 2020). This means that coronavirus particles are smaller than PM2.5, but larger than some dust and gas particles
On 20 March 2020, Setti et all published a study at the Italian Society of Environmental Medicine (SIMA), in which they found a linear relationship with R=0.98 between PM10 levels above 50 microns / m3 and the rate of spread of COVID-19 in Italy. These results are fully consistent with scientific studies on the spread of viruses and bacteria in the population by suspended particles, which correlate the incidence of viral infections with the levels of atmospheric particles (PM10 and PM2.5). (Ciencewicki J. et al., 2007; Sedlmaier N., et al., 2009).The Italian experience indicates a direct relationship between higher levels of particulate matter PM10-2.5 and higher levels of VOC-19.
For every 50 μg/m3 increase in the daily average, the logarithmic infection rate increases by 0.234%. That is to say that at average PM10 levels of 350 μg/m3 , our infection rate will be twice as high as at levels below 50 μg/m3 , as can be seen among the different infection curves observed in the regions analysed in the Italian publication, in which the high infection rate in Lombardy in the other Italian regions stands out.
